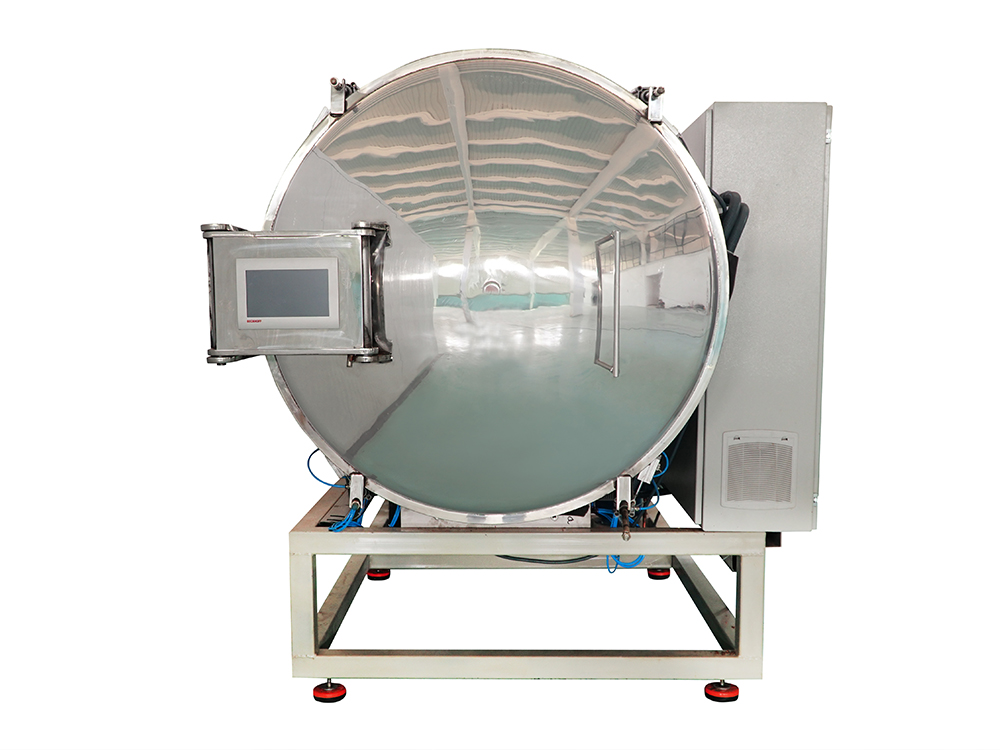

RM180 Freeze Dryer

Request a Quote
The RM180 general purpose freeze drying equipment has 180kg ice capacity and 17m2 shelf space and can dry a variety of biological, pharmaceutical, nutritional and general food products.



GENERAL SPECIFICATIONS
Outer Dimensions of the Machine Width: 1400mm Length: 2700mm Height: 2100mm
Boiler dimensions Diameter: 1350mm Depth: 2200mm
Boiler Volume 2400 Litres
Ice Condenser Capacity 170 kg

Technicial Specifications

Physical Specifications
  • Integrated Drying and Condensation Boiler
  • Engine Room Under Device
  • Dimensions of the Machine Outer
  • Width: 1400mm Length: 2700mm Height: 2100mm
Boiler Volume
  • 2400 Litres
  • Cylindirical Drying Boiler
  • Diameter: 1350mm Depth: 2200mm
  • Entire Boiler AISI R304L
  • It is made of stainless steel.
  • Leakage Rate (Empty, Dry, Cold Boiler)
  • 0.09mbar/sec
Cover
  • Front-loading Stainless Cover
  • 25cm viewing window
  • Silicone gasket
  • Manual or pneumatic lock
  • Complete AISI 304L cover
Ice Condenser
  • Standard Temperature min -45 Degrees Celsius
  • Optional Temperature min -75 Degrees Celsius
  • Condenser capacity 170 kg
Cooling Group
  • R404A gas
  • Air Cooled optional water cooling
  • 30HP cooling power
  • Hot gas defrost
  • Gas pressure protection
  • Efficient and effective compressor power management with VFD
  • Cooling Rate 20 > -40 @ 30 minutes
Shelves
  • Shelf dimensions 0.5m x 1.6m
  • Number of shelves 23
  • Tray dimensions 0.47m x 0.8m
  • Number of trays 46
  • Total tray area 17 m2
  • Usable shelf height 4cm
Heaters
  • PID-controlled
  • Maximum 1 degree surface temperature difference
  • 0.1 degrees Heating sensitivity
  • Maximum adjustable temperature 120 degrees
Measurement System
  • 5 pcs of Product Temperature Probes
  • 2 pcs of serpentine temperature probes
  • 1 pcs of Boiler Temperture Probes
  • 1 pcs of Pirani Gauge Vacuum Sensors
Automation System
  • BECKHOFF PLC
  • 24 Channel PID Temprature Controller
  • 10"  HMI
  • 15 Receipes Fully customizable with 12 steps
  • Cutomizable heat ramp
  • Fully Automatic PID Controlled motor controls
  • For Cooling compressor and Vacuum Pump
  • Ready for SCADA and PC integration
Vacuum System
  • Manual Dump Valve
  • Manual Isolation Valve
  • 120 m3 double rotary vane pump
  • VFD controlled vacuum stabilizer
Defrost
  • Hot Gas Defrost
  • Fan Dynamic Air Circulation
